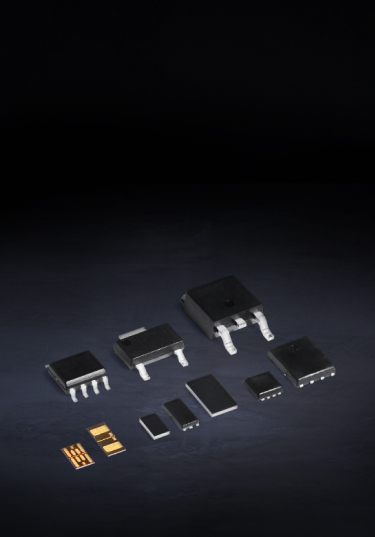

MXT MOSFETs 30V

ProductConfigurationVds [V]Ids [A] 25°CVgs(th) [Max V]Rds(on) [mOhm Max] at Vgs=Qg[nC] at 10VQgs [nC]Qgd [nC]OptionPackageDatasheet
10V4.5v
MDV1522ConfigurationSingleVds [V]30Ids [A] 25°C34Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V4.9Rds(on) [mOhm Max] at Vgs=4.5v6.8Qg[nC] at 10V29.4Qgs [nC]5.6Qgd [nC]4.7OptionPackagePDFN33DatasheetP Spice Model Info
MDIS1502THConfigurationSingleVds [V]30Ids [A] 25°C20.4Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V8.5Rds(on) [mOhm Max] at Vgs=4.5v13Qg[nC] at 10V14.3Qgs [nC]2.6Qgd [nC]2.3OptionPackageVS I-PakDatasheetP Spice Model Info
MDV3605URHConfigurationSingleVds [V]-30Ids [A] 25°C-20Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V18Rds(on) [mOhm Max] at Vgs=4.5v28Qg[nC] at 10V22Qgs [nC]3.3Qgd [nC]4.3OptionPackagePDFN33DatasheetP Spice Model Info
MDV3604URHConfigurationSingleVds [V]-30Ids [A] 25°C-12.6Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V12.1Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V30.5Qgs [nC]5.2Qgd [nC]7OptionPackagePDFN33DatasheetP Spice Model Info
MDV1527URHConfigurationSingleVds [V]30Ids [A] 25°C11Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V15.9Rds(on) [mOhm Max] at Vgs=4.5v23.7Qg[nC] at 10V7.9Qgs [nC]1.6Qgd [nC]1.3OptionPackagePDFN33DatasheetP Spice Model Info
MDV1524URHConfigurationSingleVds [V]30Ids [A] 25°C15.4Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V8.1Rds(on) [mOhm Max] at Vgs=4.5v11.6Qg[nC] at 10V15.9Qgs [nC]3.1Qgd [nC]2.8OptionPackagePDFN33DatasheetP Spice Model Info
MDV1523URHConfigurationSingleVds [V]30Ids [A] 25°C17.8Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V6.1Rds(on) [mOhm Max] at Vgs=4.5v8.4Qg[nC] at 10V25.5Qgs [nC]4.7Qgd [nC]3.6OptionPackagePDFN33DatasheetP Spice Model Info
MDU5512URHConfigurationAsymmetricVds [V]30Ids [A] 25°C46.1/80.0Vgs(th) [Max V]2.4/2.0Rds(on) [mOhm Max] at Vgs=10V8.9/3.6Rds(on) [mOhm Max] at Vgs=4.5v12.5/4.5Qg[nC] at 10V17.3/76.4Qgs [nC]3.0/9.7Qgd [nC]2.7/9.7OptionPackageDual PDFN56DatasheetP Spice Model Info
MDU3605RHConfigurationSingleVds [V]-30Ids [A] 25°C-36.5Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V17Rds(on) [mOhm Max] at Vgs=4.5v27Qg[nC] at 10V22Qgs [nC]3.3Qgd [nC]4.3OptionPackagePDFN56DatasheetP Spice Model Info
MDU3603RHConfigurationSingleVds [V]-30Ids [A] 25°C-67Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V9.1Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V38.4Qgs [nC]5.9Qgd [nC]8.2OptionPackagePDFN56DatasheetP Spice Model Info
MDU1517RHConfigurationSingleVds [V]30Ids [A] 25°C32.9Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V2.9Rds(on) [mOhm Max] at Vgs=4.5v4.4Qg[nC] at 10V41.5Qgs [nC]8.1Qgd [nC]7.9OptionPackagePDFN56DatasheetP Spice Model Info
MDU1515URHConfigurationSingleVds [V]30Ids [A] 25°C20.8Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V7.2Rds(on) [mOhm Max] at Vgs=4.5v11Qg[nC] at 10V17.5Qgs [nC]3.6Qgd [nC]2.8OptionPackagePDFN56DatasheetP Spice Model Info
MDU1514URHConfigurationSingleVds [V]30Ids [A] 25°C22.8Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V6Rds(on) [mOhm Max] at Vgs=4.5v9Qg[nC] at 10V19Qgs [nC]3Qgd [nC]2.8OptionPackagePDFN56DatasheetP Spice Model Info
MDU1513URHConfigurationSingleVds [V]30Ids [A] 25°C26.1Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V4.6Rds(on) [mOhm Max] at Vgs=4.5v7Qg[nC] at 10V27Qgs [nC]5.4Qgd [nC]4.3OptionPackagePDFN56DatasheetP Spice Model Info
MDS9652EURHConfigurationComplementaryVds [V]30 / -30Ids [A] 25°C7.2 / -6.1Vgs(th) [Max V]3.0 / -3.0Rds(on) [mOhm Max] at Vgs=10V23.0 / 38.0Rds(on) [mOhm Max] at Vgs=4.5v30.0 / 52.0Qg[nC] at 10V12.8 / 25.1Qgs [nC]1.9 / 4.1Qgd [nC]2.7 / 4.9OptionPackageSOIC 8DatasheetP Spice Model Info
MDS9651URHConfigurationComplementaryVds [V]30 / -30Ids [A] 25°C6.9 / -6.0Vgs(th) [Max V]3.0 / -3.0Rds(on) [mOhm Max] at Vgs=10V28.0 / 35.0Rds(on) [mOhm Max] at Vgs=4.5v42.0 / 55.0Qg[nC] at 10V6.94 / 18.4Qgs [nC]1.54 / 3.1Qgd [nC]1.96 / 3.6OptionPackageSOIC 8DatasheetP Spice Model Info
MDS5601URHConfigurationDualVds [V]30Ids [A] 25°C10Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V10.5Rds(on) [mOhm Max] at Vgs=4.5v16.1Qg[nC] at 10V15.7Qgs [nC]3.4Qgd [nC]2.5OptionPackageSOIC 8DatasheetP Spice Model Info
MDS3653URHConfigurationSingleVds [V]-30Ids [A] 25°C-14.6Vgs(th) [Max V]-2Rds(on) [mOhm Max] at Vgs=10V7Rds(on) [mOhm Max] at Vgs=4.5v15Qg[nC] at 10V70Qgs [nC]8Qgd [nC]15OptionPackageSOIC 8DatasheetP Spice Model Info
MDS3652URHConfigurationSingleVds [V]-30Ids [A] 25°C-11Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V17Rds(on) [mOhm Max] at Vgs=4.5v27Qg[nC] at 10V35Qgs [nC]7.8Qgd [nC]6.2OptionPackageSOIC 8DatasheetP Spice Model Info
MDS3651URHConfigurationSingleVds [V]-30Ids [A] 25°C-6Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V35Rds(on) [mOhm Max] at Vgs=4.5v55Qg[nC] at 10V18.4Qgs [nC]3.1Qgd [nC]3.6OptionPackageSOIC 8DatasheetP Spice Model Info
MDS3604URHConfigurationSingleVds [V]-30Ids [A] 25°C-11Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V12.1Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V30.5Qgs [nC]5.2Qgd [nC]7OptionPackageSOIC 8DatasheetP Spice Model Info
MDS3603URHConfigurationSingleVds [V]-30Ids [A] 25°C-12Vgs(th) [Max V]-3Rds(on) [mOhm Max] at Vgs=10V10.1Rds(on) [mOhm Max] at Vgs=4.5vQg[nC] at 10V38.4Qgs [nC]5.9Qgd [nC]8.2OptionPackageSOIC 8DatasheetP Spice Model Info
MDS1656URHConfigurationSingleVds [V]30Ids [A] 25°C7.2Vgs(th) [Max V]3Rds(on) [mOhm Max] at Vgs=10V28Rds(on) [mOhm Max] at Vgs=4.5v42Qg[nC] at 10V6.94Qgs [nC]1.54Qgd [nC]1.4OptionPackageSOIC 8DatasheetP Spice Model Info
MDS1528URHConfigurationSingleVds [V]30Ids [A] 25°C8.7Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V18.8Rds(on) [mOhm Max] at Vgs=4.5v27.8Qg[nC] at 10V7.3Qgs [nC]1.6Qgd [nC]1.3OptionPackageSOIC 8DatasheetP Spice Model Info
MDS1527URHConfigurationSingleVds [V]30Ids [A] 25°C9.4Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V15.9Rds(on) [mOhm Max] at Vgs=4.5v23.7Qg[nC] at 10V7.8Qgs [nC]1.7Qgd [nC]1.2OptionPackageSOIC 8DatasheetP Spice Model Info
MDS1524URHConfigurationSingleVds [V]30Ids [A] 25°C13.2Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V8.1Rds(on) [mOhm Max] at Vgs=4.5v11.6Qg[nC] at 10V16.2Qgs [nC]3.1Qgd [nC]2.7OptionPackageSOIC 8DatasheetP Spice Model Info
MDS1521URHConfigurationSingleVds [V]30Ids [A] 25°C18.8Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V4Rds(on) [mOhm Max] at Vgs=4.5v5.5Qg[nC] at 10V38.3Qgs [nC]7.6Qgd [nC]13.3OptionPackageSOIC 8DatasheetP Spice Model Info
MDIS1501THConfigurationSingleVds [V]30Ids [A] 25°C25.1Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V5.6Rds(on) [mOhm Max] at Vgs=4.5v8.6Qg[nC] at 10V20.7Qgs [nC]3.7Qgd [nC]2.9OptionPackageVS I-PakDatasheetP Spice Model Info
MDD1503RHConfigurationSingleVds [V]30Ids [A] 25°C28.2Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V4.7Rds(on) [mOhm Max] at Vgs=4.5v6.8Qg[nC] at 10V28Qgs [nC]5.9Qgd [nC]4.2OptionPackageDPAKDatasheetP Spice Model Info
MDD1502RHConfigurationSingleVds [V]30Ids [A] 25°C20.4Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V8.5Rds(on) [mOhm Max] at Vgs=4.5v13Qg[nC] at 10V14.3Qgs [nC]2.6Qgd [nC]2.3OptionPackageDPAKDatasheetP Spice Model Info
MDD1501RHConfigurationSingleVds [V]30Ids [A] 25°C25.1Vgs(th) [Max V]2.7Rds(on) [mOhm Max] at Vgs=10V5.6Rds(on) [mOhm Max] at Vgs=4.5v8.6Qg[nC] at 10V20.7Qgs [nC]3.7Qgd [nC]2.9OptionPackageDPAKDatasheetP Spice Model Info
RoHS Compliant
